PCSX2

Install Location	\Launchbox\Emulators\pcsx2-lightgun-V1.0	\Launchbox\Emulators\pcsx2-lightgun-V1.1	\Launchbox\Emulators\PCSX2
ROM Location	\Launchbox\Games\PS2

PCSX2
Emulates	Sony Playstation 2
Developer
License	Free
Download	[1]

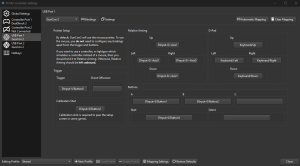

Controller Remapping

Controller mapping is configured in PCSX2

Lightguns are configured for Direct Input (if supported)

1. Run pcsx2-qtx64-avx2.exe from the install location
2. Navigate to settings -> controllers
3. Click on the USB Port 1 "Guncon 2" to configure player 1



4. Repeat for player 2

Change video resolution

NOTE - changing resolution can cause issues with aiming accuracy/aim drift. Use at your own discretion

NOTE - most PS2 games are rendered at an internal aspect ratio of 4:3. Setting an aspect ratio of 16:9 can cause your aim to "drift" as you aim further away from the center

Set in PCSX2

1. Run pcsx2-qtx64-avx2.exe from the install location
2. Navigate to settings -> Graphics -> Rendering

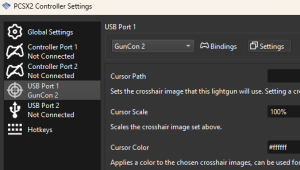

Enable/Disable Crosshairs

Set in PCSX2

1. Run pcsx2-qtx64-avx2.exe from the install location
2. Navigate to settings -> controllers
3. Click on the USB Port 1 "Guncon 2"
4. Click on the "Settings" tab
5. Set the cursor image in the Cursor Path field



Lightgun Calibration

Calibration is done on a game by game basis at game boot.

If a game fails to detect/calibrate when at the Calibrate GunCon 2 screen, follow the below:

1. Run pcsx2-qtx64-avx2.exe from the install location
2. Navigate to settings -> controllers
3. Click on the USB Port 1 "Guncon 2"
4. In the Bindings tab - select the Calibrate Skip button and set a DIFFERENT button than your trigger.
5. Rerun the game and validate that hitting this new button calibrates the gun
